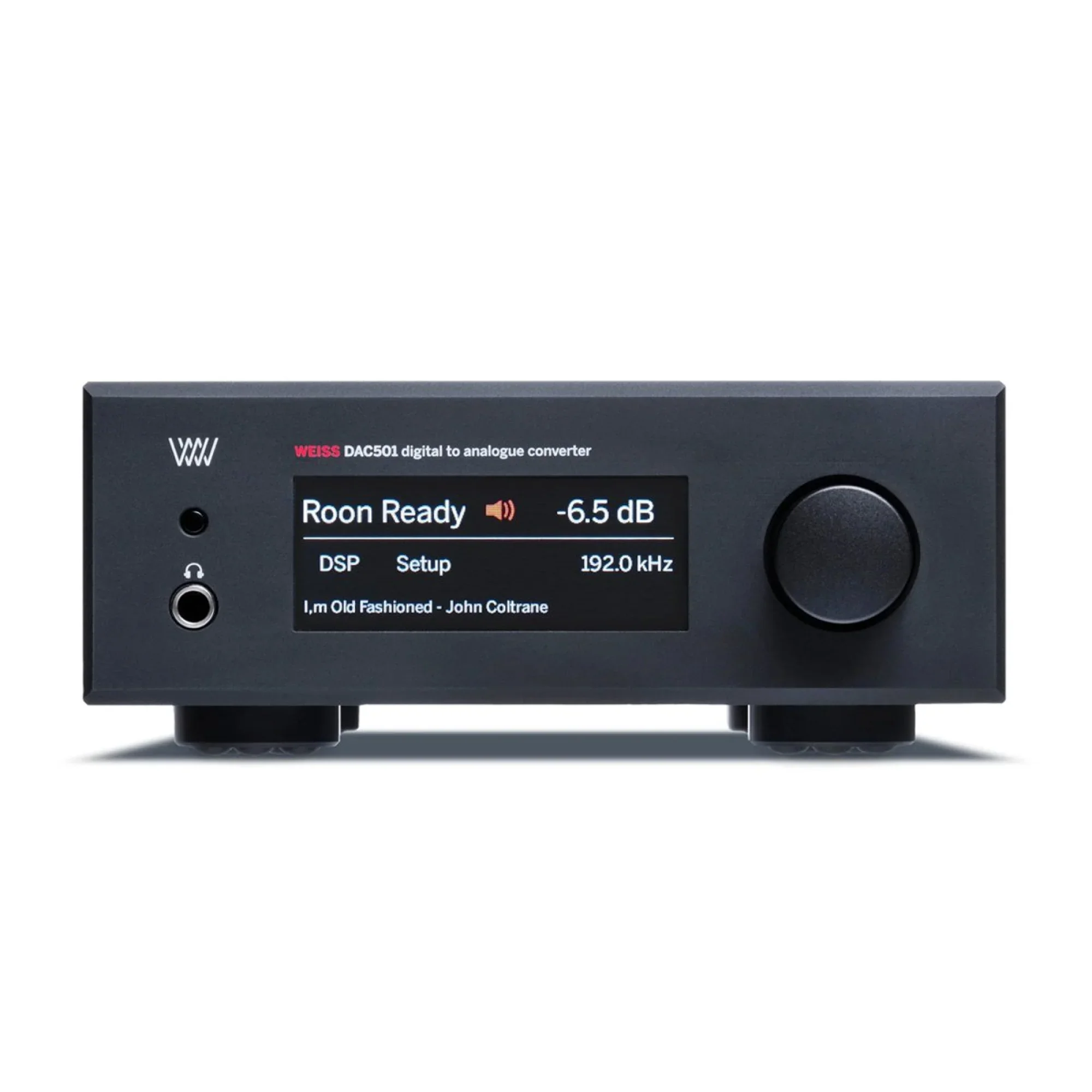

Weiss

DAC501

D/A Converter

₹920,000.00

The Weiss DAC501 is a high-end digital-to-analog converter meticulously engineered to deliver exceptional precision, reference-grade clarity, and professional-level performance in both studio and high-fidelity home audio environments. Built upon Weiss’s decades of digital signal processing expertise, the DAC501 combines advanced conversion architecture with flexible connectivity, providing multiple digital input options—including USB, coaxial, optical, and network audio—ensuring seamless integration into modern audio setups. Its sophisticated internal processing enables refined control over output levels, allowing users to fine-tune gain staging for ideal pairing with a broad range of amplifiers, powered speakers, and high-end headphones. The unit features both line and headphone outputs that are designed for ultra-low noise, high linearity, and pristine signal integrity, ensuring that the DAC501 maintains accuracy even in the most demanding listening scenarios. One of its standout strengths is the flexible output scaling, which offers precise adjustability to match the sensitivity and requirements of various downstream components, thereby maximizing dynamic performance and minimizing distortion. The DAC501’s intelligent automatic voltage selection and notably low power consumption further highlight the meticulous attention to engineering detail, promoting long-term reliability, efficiency, and adaptability across diverse environments. Housed in a compact yet robust chassis, the DAC501 combines durability with understated elegance, reflecting its professional heritage while remaining suitable for both rack-based and desktop installations. Altogether, the Weiss DAC501 stands as a comprehensive, highly refined digital-to-analog solution that delivers outstanding sonic transparency, operational versatility, and the trustworthy performance expected from a manufacturer long respected in the world of high-end and professional audio.

Specifications

Power

• Mains voltage: 100–120 V or 200–240 V (automatic selection)

• Fuse rating:

– 500 mA slow blow at 100–120 V

– 250 mA slow blow at 200–240 V

• Power consumption: 25 VA max

• Standby power consumption: 2.2 VA max

Size

• Depth: 30 cm

• Width: 18.8 cm

• Height: 6.6 cm (7.2 cm with feet)

Digital Inputs

• 1 × XLR (AES/EBU)

• 1 × RCA (S/PDIF)

• 1 × TOSLINK (optical)

• 1 × USB-B

• 1 × RJ45 Ethernet

Line Output — XLR (0 dBFS sine input)

• 0 dB: 6.8 Vrms / +18.9 dBu

• –10 dB: 2.2 Vrms / +8.9 dBu

• –20 dB: 0.68 Vrms / –1.1 dBu

• –30 dB: 0.22 Vrms / –11.1 dBu

Suggested amplifier input impedance (XLR)

• 0 dB: ≥ 900 Ω

• –10 dB: ≥ 100 Ω

• –20 dB: ≥ 60 Ω

• –30 dB: ≥ 60 Ω

Line Output — RCA (0 dBFS sine input)

• 0 dB: 3.4 Vrms / +12.9 dBu

• –10 dB: 1.1 Vrms / +2.9 dBu

• –20 dB: 0.34 Vrms / –7.1 dBu

• –30 dB: 0.11 Vrms / –17.1 dBu

Suggested amplifier input impedance (RCA)

• 0 dB: ≥ 450 Ω

• –10 dB: ≥ 50 Ω

• –20 dB: ≥ 30 Ω

• –30 dB: ≥ 30 Ω

Headphone Output (0 dBFS sine input)

• 0 dB: 6.8 Vrms / +18.9 dBu

• –10 dB: 2.2 Vrms / +8.9 dBu

• –20 dB: 0.68 Vrms / –1.1 dBu

• –30 dB: 0.22 Vrms / –11.1 dBu

Suggested headphone impedances

• 0 dB: ≥ 200 Ω

• –10 dB: ≥ 30 Ω

• –20 dB: ≥ 10 Ω

• –30 dB: ≥ 4 Ω
