Outline

Outline

MVS218

MVS218

Passive Subwoofer

Passive Subwoofer

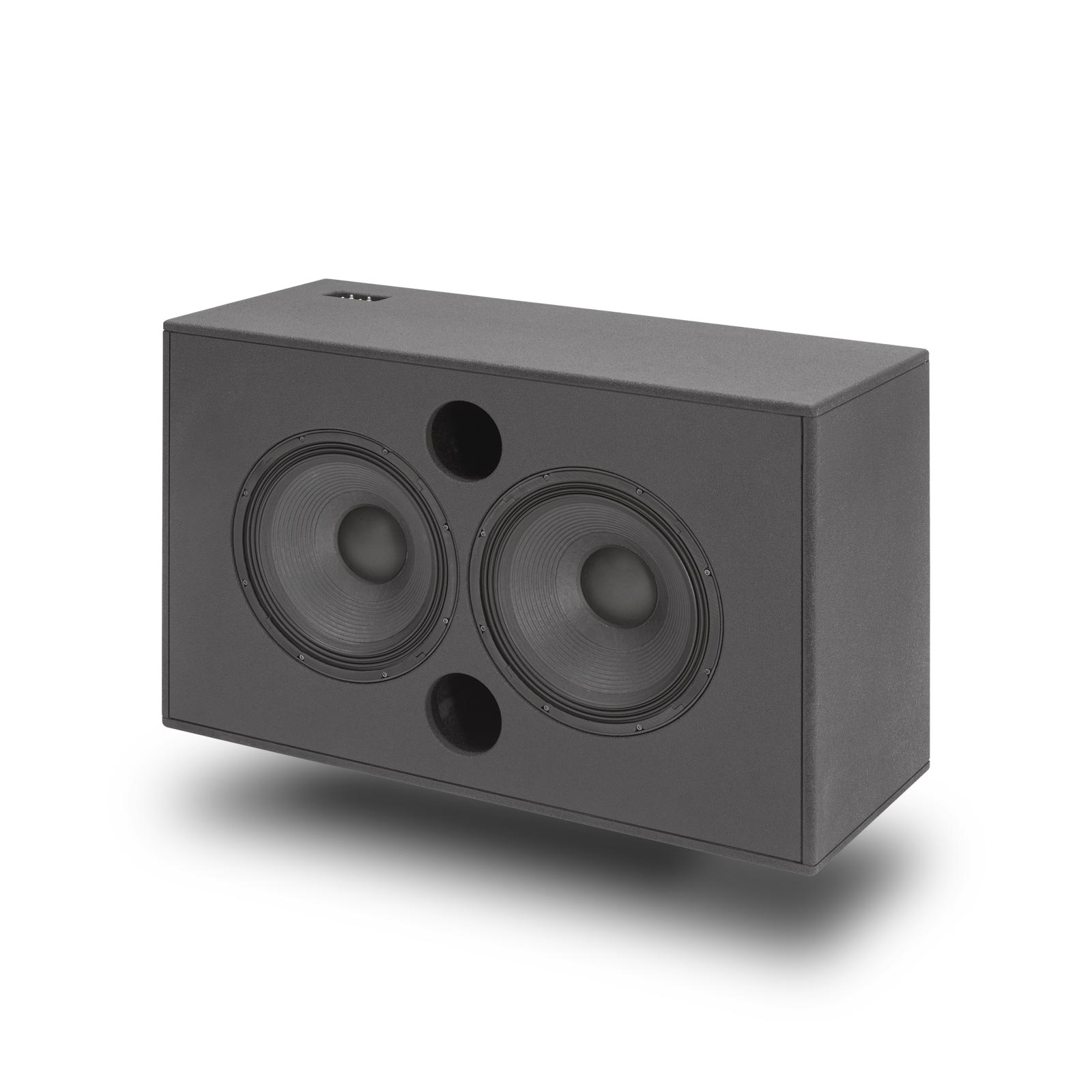

The Outline MVS218 is a powerful dual-driver cinema subwoofer designed to deliver the deep and impactful low-frequency performance demanded by modern film soundtracks. As part of Outline’s Movie Series loudspeaker family, the MVS218 is specifically engineered for large cinema environments where high sound pressure levels and extended bass response are essential. The system incorporates two high-excursion 18-inch woofers mounted within a robust enclosure designed to maximize acoustic efficiency and output capability. This dual-driver configuration allows the subwoofer to generate substantial bass energy while maintaining precise control over transient response, ensuring that explosive effects, musical bass lines, and atmospheric low-frequency content are reproduced accurately. The cabinet construction is optimized to minimize resonance and mechanical vibration, allowing the drivers to operate efficiently while preserving clarity and tight bass definition. Carefully designed airflow and internal acoustic loading enhance the system’s efficiency and extend its usable frequency range into the lowest octave of the audible spectrum. The MVS218 integrates seamlessly with the other speakers in the Movie Series range, enabling cinema sound designers to achieve a balanced and cohesive audio presentation across the entire frequency spectrum. Its high power handling and robust design allow it to operate reliably in demanding professional environments, including multiplex theatres and large screening rooms where sustained high playback levels are common. By delivering powerful, controlled low-frequency reproduction, the Outline MVS218 ensures that audiences experience the full emotional and physical impact of cinematic soundtracks.

Specifications

Frequency range satellite

• N/A

Frequency range subwoofer

• 28–150 Hz

Power handling

• 1,800 W AES

Sensitivity (1 Watt/1 m)

• 101 dB

Crossover frequencies

• 80–120 Hz recommended

Nominal impedance

• 4 Ohm

Recommended amplifier power

• 3,600 W

Recommended room size

• Large cinema theatres

Technical features

• Dual 18" high-excursion woofers
• High SPL cinema subwoofer
• Reinforced high-power enclosure

Frequency range satellite

• N/A

Frequency range subwoofer

• 28–150 Hz

Power handling

• 1,800 W AES

Sensitivity (1 Watt/1 m)

• 101 dB

Crossover frequencies

• 80–120 Hz recommended

Nominal impedance

• 4 Ohm

Recommended amplifier power

• 3,600 W

Recommended room size

• Large cinema theatres

Technical features

• Dual 18" high-excursion woofers
• High SPL cinema subwoofer
• Reinforced high-power enclosure
