Outline

Outline

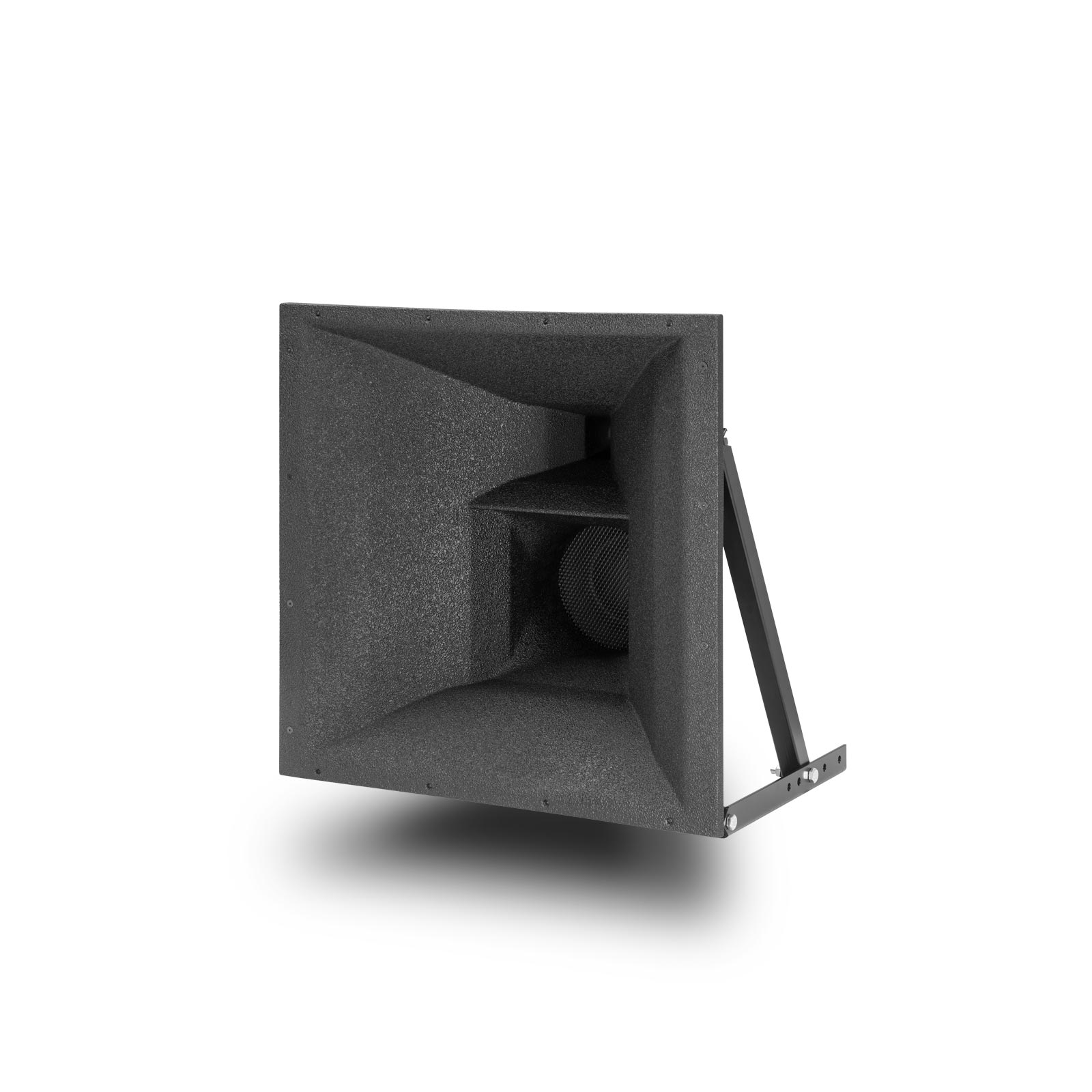

MVH102

MVH102

Horn Speaker

Horn Speaker

The Outline MVH102 is a high-efficiency two-way horn loudspeaker designed for cinema and professional audio installations where controlled directivity and high output capability are required. Developed within the Outline Movie Series, the MVH102 is optimized to reproduce mid- and high-frequency content with exceptional clarity and projection, making it ideal for front-stage reinforcement and specialized cinema installations. The loudspeaker utilizes a 10-inch low-frequency driver combined with a large format compression driver mounted to a precisely engineered horn waveguide. This configuration ensures controlled dispersion and efficient acoustic coupling with the listening area, allowing sound to reach distant seating positions while maintaining consistent tonal balance. The horn design also improves efficiency and dynamic headroom, enabling the system to deliver high sound pressure levels without introducing distortion or harshness. The cabinet construction is robust and optimized for fixed installation, providing structural integrity while minimizing acoustic coloration. Carefully designed crossover networks maintain smooth frequency transitions between drivers, resulting in a coherent and balanced sound signature suitable for cinematic playback. The MVH102 is often used in conjunction with other Movie Series loudspeakers to form complete cinema sound systems capable of delivering immersive audio experiences. With its high efficiency, reliable performance, and controlled coverage, the Outline MVH102 provides the precision and power required for professional cinema sound reproduction.

Specifications

Frequency range satellite

• 60–18,000 Hz

Frequency range subwoofer

• N/A

Power handling

• 300 W AES

Sensitivity (1 Watt/1 m)

• 100 dB

Crossover frequencies

• 1,500 Hz

Nominal impedance

• 8 Ohm

Recommended amplifier power

• 600 W

Recommended room size

• Cinema installations

Technical features

• 10" low-frequency driver
• Horn-loaded compression driver
• Controlled dispersion horn

Frequency range satellite

• 60–18,000 Hz

Frequency range subwoofer

• N/A

Power handling

• 300 W AES

Sensitivity (1 Watt/1 m)

• 100 dB

Crossover frequencies

• 1,500 Hz

Nominal impedance

• 8 Ohm

Recommended amplifier power

• 600 W

Recommended room size

• Cinema installations

Technical features

• 10" low-frequency driver
• Horn-loaded compression driver
• Controlled dispersion horn
