Outline

Outline

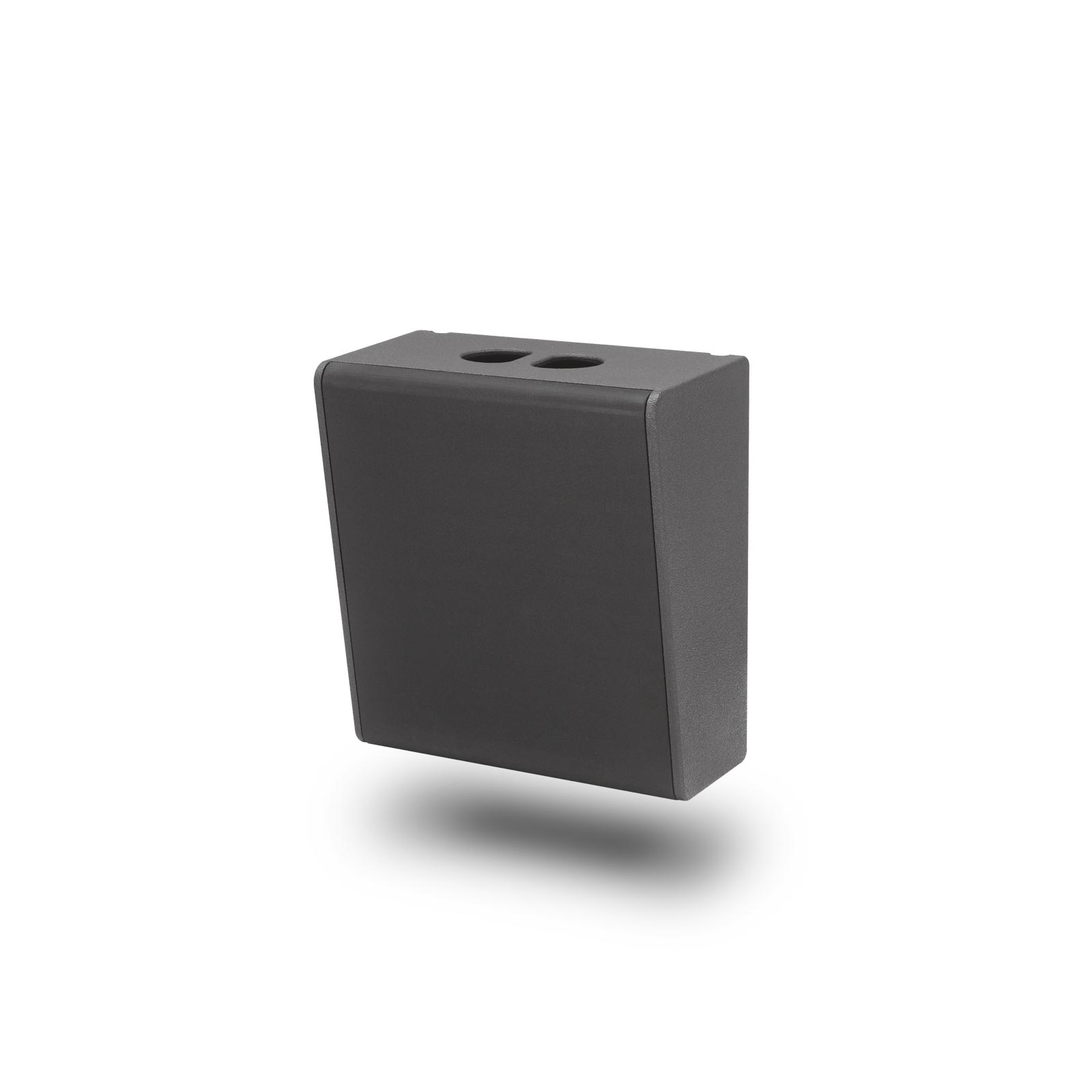

MVFX101

MVFX101

Surround Speakers

Surround Speakers

The Outline MVFX101 is a professional two-way surround loudspeaker engineered specifically for cinema and immersive audio environments where precise spatial imaging and consistent tonal balance are essential. Designed as part of Outline’s Movie Series cinema loudspeaker lineup, the MVFX101 combines high output capability with controlled dispersion to deliver clear, detailed surround sound across large seating areas. Its acoustic design incorporates a 10-inch low-frequency driver paired with a high-efficiency horn-loaded compression driver that ensures articulate dialogue reproduction and accurate reproduction of ambient effects. The cabinet is optimized for cinema installations, providing wide and even coverage so that listeners seated in different parts of the auditorium experience consistent audio quality. Careful crossover tuning ensures seamless integration between the low-frequency and high-frequency sections, resulting in a balanced tonal character with excellent transient response and minimal distortion even at high playback levels. The enclosure construction is robust and optimized for permanent installations, with durable materials that reduce unwanted resonance while maintaining acoustic integrity. Designed to complement front-stage systems in the Movie Series range, the MVFX101 ensures that surround channels maintain the same sonic signature as the main speakers, allowing immersive movie soundtracks to be reproduced exactly as intended by sound designers and engineers. Whether used in multiplex cinemas, private screening rooms, or high-performance media rooms, the Outline MVFX101 delivers reliable performance, high SPL capability, and exceptional clarity for surround sound reproduction.

Specifications

Frequency range satellite

• 57–18,000 Hz

Frequency range subwoofer

• N/A

Power handling

• 250 W AES

Sensitivity (1 Watt/1 m)

• 97 dB

Crossover frequencies

• 1,600 Hz

Nominal impedance

• 8 Ohm

Recommended amplifier power

• 500 W

Recommended room size

• Cinema surround environments

Technical features

• 10" low-frequency driver
• Horn-loaded compression driver
• Optimized cinema surround dispersion

Frequency range satellite

• 57–18,000 Hz

Frequency range subwoofer

• N/A

Power handling

• 250 W AES

Sensitivity (1 Watt/1 m)

• 97 dB

Crossover frequencies

• 1,600 Hz

Nominal impedance

• 8 Ohm

Recommended amplifier power

• 500 W

Recommended room size

• Cinema surround environments

Technical features

• 10" low-frequency driver
• Horn-loaded compression driver
• Optimized cinema surround dispersion
