MVB215

MVB215

Passive Subwoofer

Passive Subwoofer

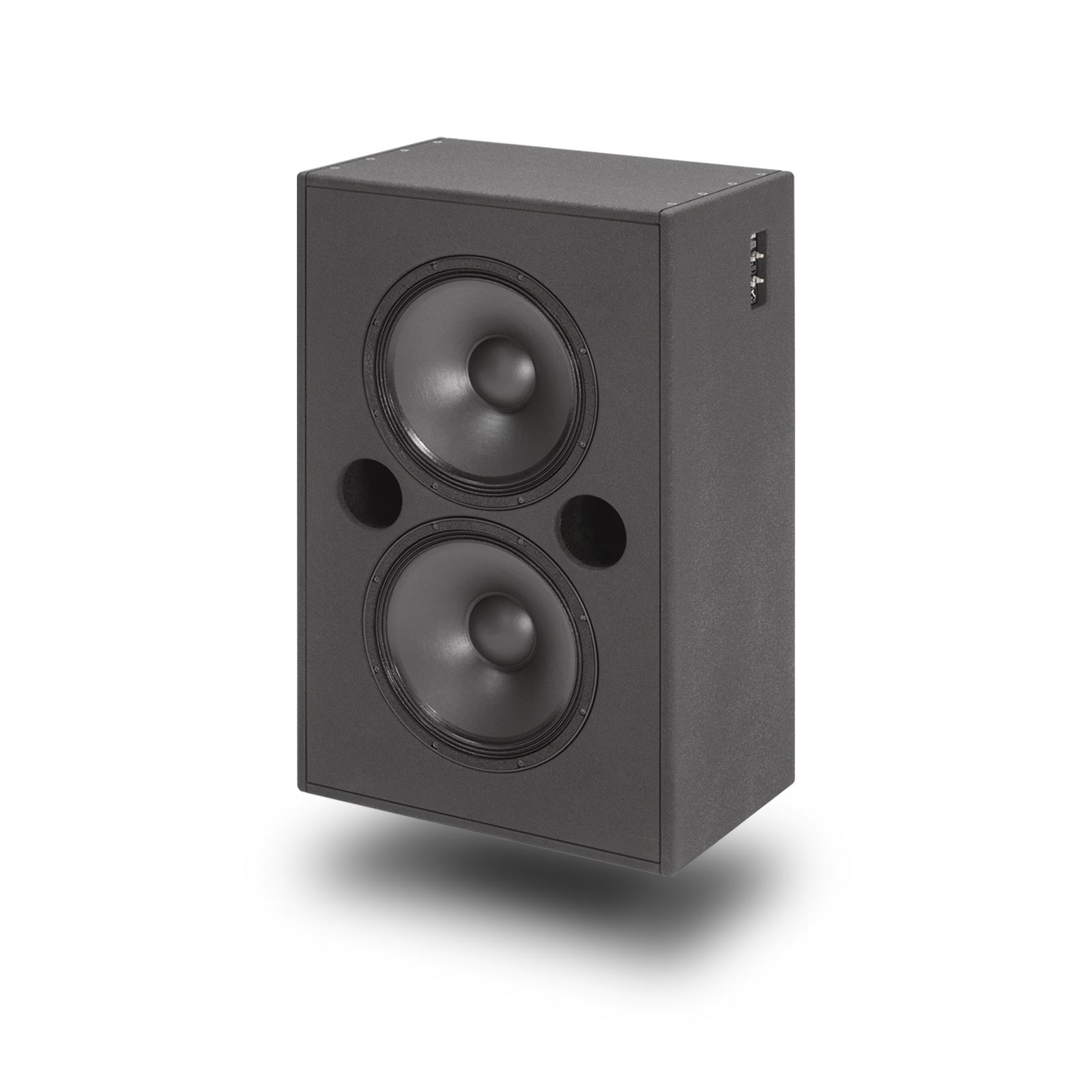

The Outline MVB215 is a powerful low-frequency loudspeaker system designed to provide the deep, impactful bass reproduction required in professional cinema environments. As part of the Outline Movie Series, the MVB215 is engineered to complement front-channel loudspeakers by delivering extended low-frequency performance with high output capability and exceptional reliability. The system incorporates dual 15-inch high-excursion woofers housed within a carefully tuned enclosure that maximizes low-frequency efficiency while maintaining tight, controlled bass response. The cabinet construction is optimized to minimize unwanted resonance and vibration, ensuring accurate reproduction of cinematic effects such as explosions, musical scores, and environmental ambience. The MVB215 is capable of producing high sound pressure levels without distortion, making it ideal for large theatre installations where powerful bass energy is required to support the visual experience. Its robust design and high power handling allow it to operate reliably even during extended high-level playback typical of cinema applications. When integrated with Outline’s front-channel loudspeakers, the MVB215 provides seamless low-frequency reinforcement that enhances the overall immersion of the soundtrack. Whether installed in multiplex theatres or premium screening rooms, the MVB215 delivers the depth, power, and precision necessary for authentic cinematic sound reproduction.

Specifications

Frequency range satellite

• N/A

Frequency range subwoofer

• 35–200 Hz

Power handling

• 1,000 W AES

Sensitivity (1 Watt/1 m)

• 98 dB

Crossover frequencies

• 80–120 Hz recommended

Nominal impedance

• 4 Ohm

Recommended amplifier power

• 2,000 W

Recommended room size

• Large cinema rooms

Technical features

• Dual 15" high-excursion woofers
• Cinema subwoofer enclosure
• High SPL low-frequency performance

Frequency range satellite

• N/A

Frequency range subwoofer

• 35–200 Hz

Power handling

• 1,000 W AES

Sensitivity (1 Watt/1 m)

• 98 dB

Crossover frequencies

• 80–120 Hz recommended

Nominal impedance

• 4 Ohm

Recommended amplifier power

• 2,000 W

Recommended room size

• Large cinema rooms

Technical features

• Dual 15" high-excursion woofers
• Cinema subwoofer enclosure
• High SPL low-frequency performance
