Outline

Outline

AI81

AI81

Column Speaker

Column Speaker

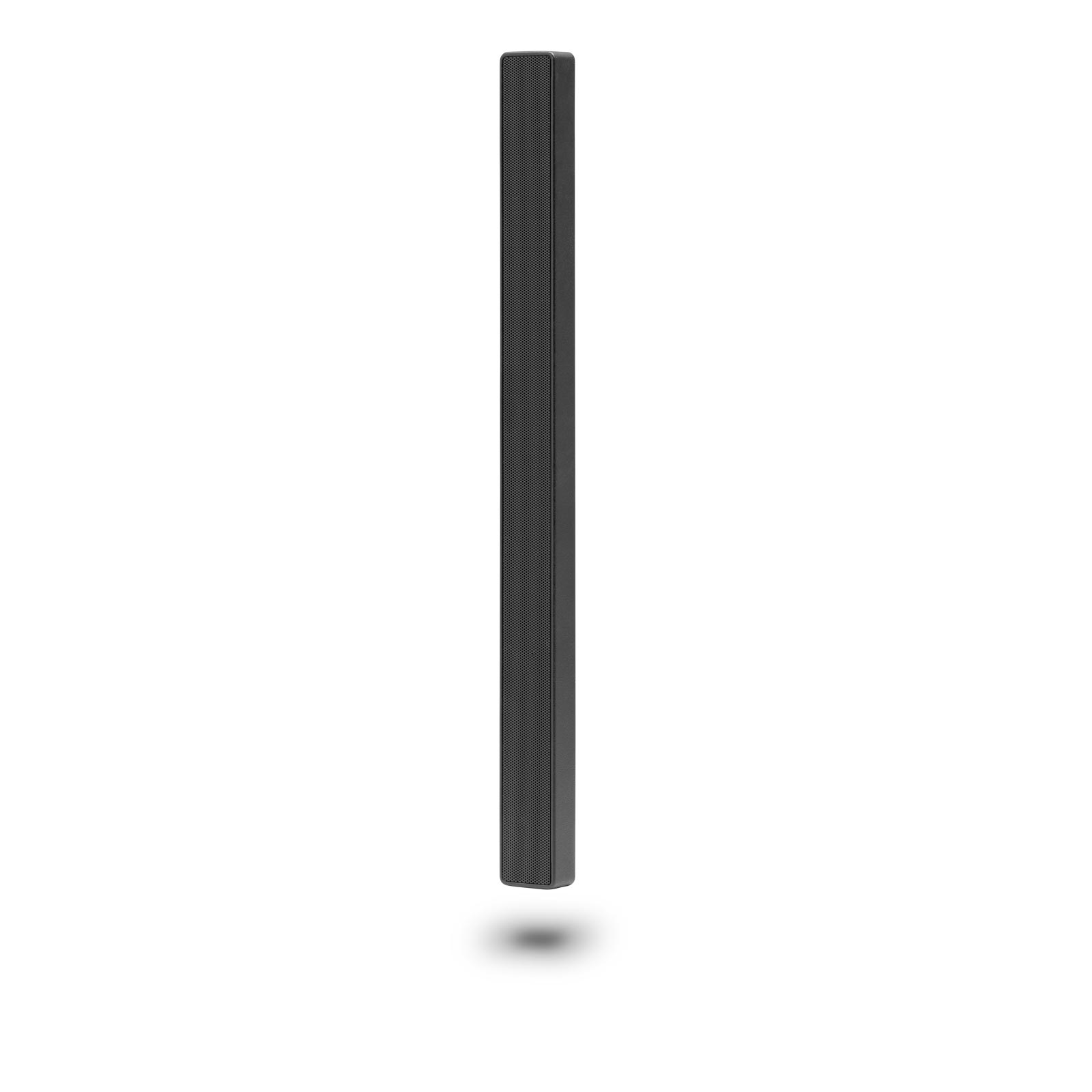

The Outline AI81 is a high-performance column loudspeaker designed to provide powerful yet discreet audio reinforcement for architectural installations. Building upon the design philosophy of the AI Series, the AI81 incorporates a larger driver array than the AI41, allowing it to produce greater output and improved coverage in medium-to-large spaces. The system employs multiple small-diameter drivers arranged vertically to form a line-source-style configuration that enhances speech intelligibility and ensures consistent sound distribution across the listening area. This configuration minimizes unwanted reflections from ceilings and floors, helping maintain clarity even in acoustically challenging environments. A dedicated high-frequency driver provides extended treble response and ensures accurate reproduction of music and spoken content. The slim enclosure design allows the loudspeaker to blend into architectural spaces while delivering sound levels suitable for commercial venues, hospitality environments, and conference facilities. The cabinet construction is designed to remain rigid and vibration-free, ensuring that the drivers operate efficiently and produce clean sound reproduction. Flexible mounting solutions enable the AI81 to be installed vertically on walls or columns depending on the acoustic requirements of the installation. By combining a compact visual profile with powerful acoustic performance, the Outline AI81 provides an effective solution for designers seeking high-quality distributed audio without compromising the aesthetics of the space.

Specifications

Frequency range satellite

• 80–20,000 Hz

Frequency range subwoofer

• N/A

Power handling

• 180 W AES

Sensitivity (1 Watt/1 m)

• 92 dB

Crossover frequencies

• 3,000 Hz

Nominal impedance

• 8 Ohm

Recommended amplifier power

• 360 W

Recommended room size

• Medium rooms and venues

Technical features

• Column array design
• Multiple 1" drivers
• Integrated dome tweeter

Frequency range satellite

• 80–20,000 Hz

Frequency range subwoofer

• N/A

Power handling

• 180 W AES

Sensitivity (1 Watt/1 m)

• 92 dB

Crossover frequencies

• 3,000 Hz

Nominal impedance

• 8 Ohm

Recommended amplifier power

• 360 W

Recommended room size

• Medium rooms and venues

Technical features

• Column array design
• Multiple 1" drivers
• Integrated dome tweeter
