Moon by Simaudio

Moon by Simaudio

260DT

260DT

CD Transport

CD Transport

₹320,000.00

₹320,000.00

₹320,000.00

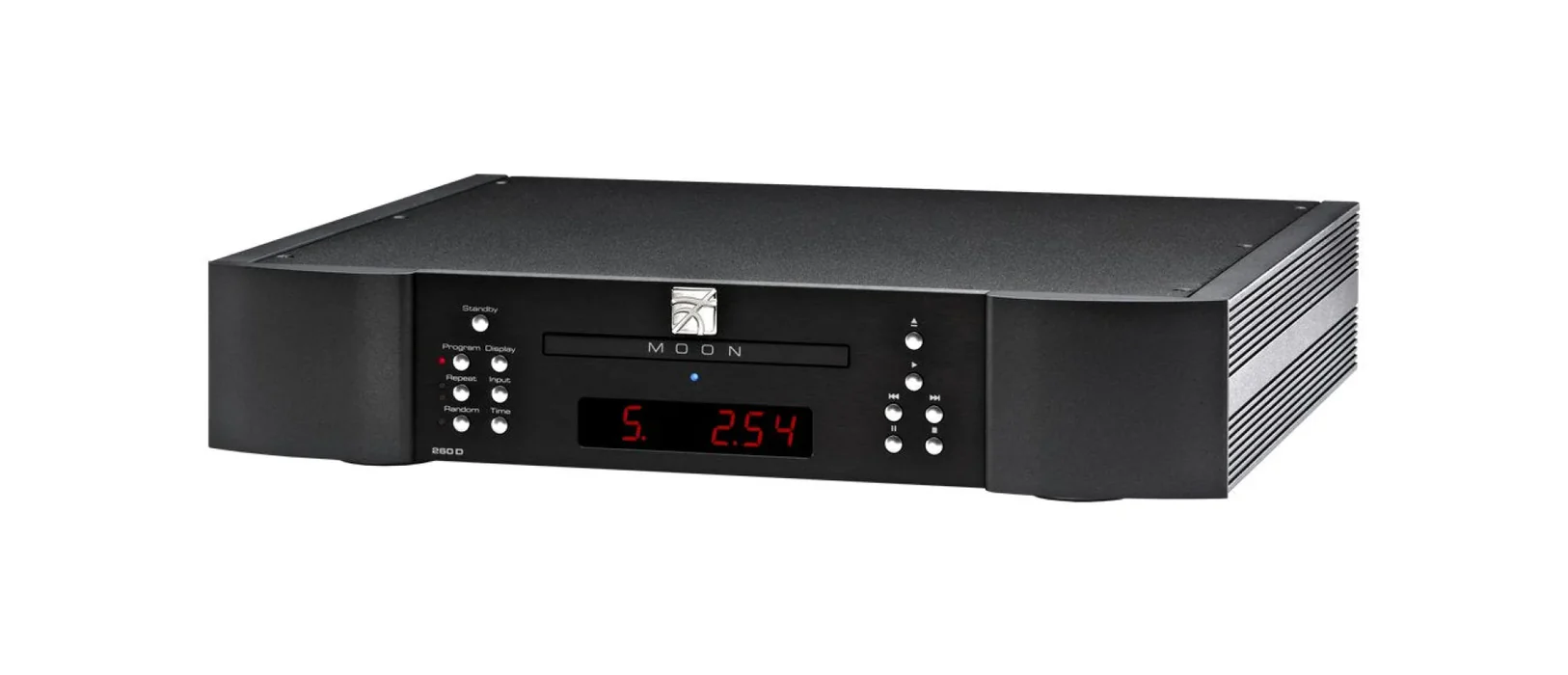

The MOON 260DT (or 260D with DAC option) is a serious, high-fidelity digital transport — designed for flexibility and future-proofing. Mounted on a gel-based 4-point floating suspension, its proprietary CD drive ensures minimal vibration and maximized retrieval accuracy. With dual digital outputs (S/PDIF and AES/EBU), optional DAC stage, and support for high-resolution digital sources via USB, TosLink and coax inputs, the 260DT offers a bridge between classic disc playback and modern streaming or file-based audio. Its rigorous design yields a wide 2 Hz–100 kHz frequency response, low jitter (1 ps RMS), high dynamic range (120 dB), and excellent channel separation (116 dB), making it a superb digital hub for both pure digital systems and hybrid rigs aiming for resolution, stability, and long-term versatility.

Specifications

Digital Outputs

• S/PDIF, AES/EBU

Optional DAC Outputs

• Balanced XLR & Unbalanced RCA, 2.0 V @ 0 dBFS, 75 Ω output impedance

Supported PCM / Sampling

• PCM 16–24 bit, 44.1–192 kHz

Frequency Response (full range)

• 2 Hz – 100 kHz +0/–3 dB

Total Harmonic Distortion (THD)

• 0.005% @ 1 kHz, 0 dBFS

Dynamic Range / Signal-to-Noise Ratio

• 120 dB · S/N: 120 dB (full output)

Channel Separation

• 116 dB

Intrinsic Jitter

• 1 ps RMS

Physical

• Dimensions: 429 × 86 × 333 mm · Weight: 7.5 kg
