Denon

Denon

PMA-1700NE

PMA-1700NE

Integrated Amplifier

Integrated Amplifier

₹239,900.00

₹239,900.00

₹239,900.00

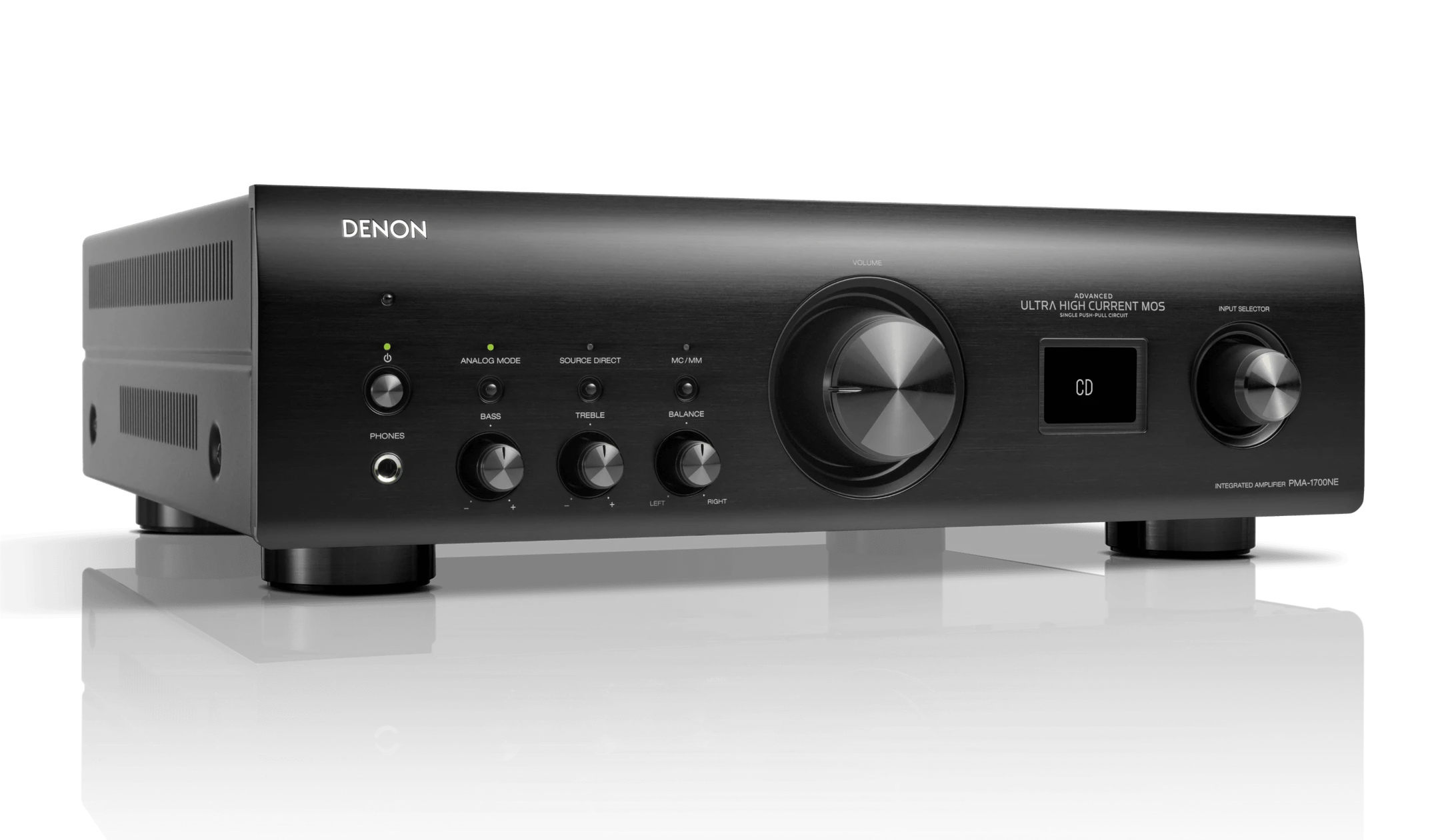

The Denon PMA-1700NE is a premium integrated amplifier engineered for audiophiles who demand refined musicality, powerful drive capability, and exceptional clarity. Built with Denon’s Advanced UHC-MOS Single-Push-Pull circuitry, the PMA-1700NE delivers a highly linear, detailed sound signature with excellent control across the full frequency spectrum. With 70 watts per channel into 8 ohms and 140 watts into 4 ohms, it ensures strong dynamic headroom and authoritative performance even with demanding loudspeakers. Its wide frequency response from 5 Hz to 100 kHz preserves micro-detail and tonal accuracy, while ultra-low distortion at 0.01% highlights Denon’s commitment to clean signal reproduction. Vinyl enthusiasts benefit from a high-quality phono stage supporting both MM and MC cartridges, featuring accurate RIAA equalization within ±0.5 dB. The amplifier’s generous input sensitivity range and excellent signal-to-noise ratios (89 dB MM, 74 dB MC, 107 dB CD) provide a quiet and transparent listening experience. Tone controls allow precise adjustment of bass and treble, and the EXT. PRE power amp input supports integration with external preamps or home-theater processors. With robust build quality, substantial power reserves, and Denon’s heritage of audio craftsmanship, the PMA-1700NE is a versatile, musical, and highly capable amplifier for serious home audio systems.

Specifications

Rated Output Power

• 70 W + 70 W (8 Ω, 20 Hz–20 kHz, THD 0.07%)

• 140 W + 140 W (4 Ω, 1 kHz, THD 0.7%)

Speaker Impedance

• A or B: 4–16 Ω

• A + B: 8–16 Ω

Frequency Response

• 5 Hz – 100 kHz (0 to –3 dB)

Total Harmonic Distortion

• 0.01% (Rated output –3 dB, 8 Ω, 1 kHz)

Damping Factor

• ≥100

Input Sensitivity: Phono

• MM: 2.5 mV / 47 kΩ

• MC: 200 µV / 100 Ω

RIAA Deviation

• ±0.5 dB (20 Hz – 20 kHz, MM/MC)

Phono Maximum Input

• MM: 130 mV / 1 kHz

• MC: 10 mV / 1 kHz

Input Sensitivity: CD/Line/Recorder

• 125 mV / 19 kΩ

Input Sensitivity: Power Amp Input (EXT. PRE)

• 0.85 V / 47 kΩ

Signal to Noise Ratio

• Phono (MM): 89 dB

• Phono (MC): 74 dB

• CD: 107 dB

Tone Control

• Bass: 100 Hz ±8 dB

• Treble: 10 kHz ±8 dB

Power Consumption

• 295 W

• Standby: 0.2 W (TV autoplay off), 0.4 W (TV autoplay on)
