Ayre Acoustics

Ayre Acoustics

QX-8

QX-8

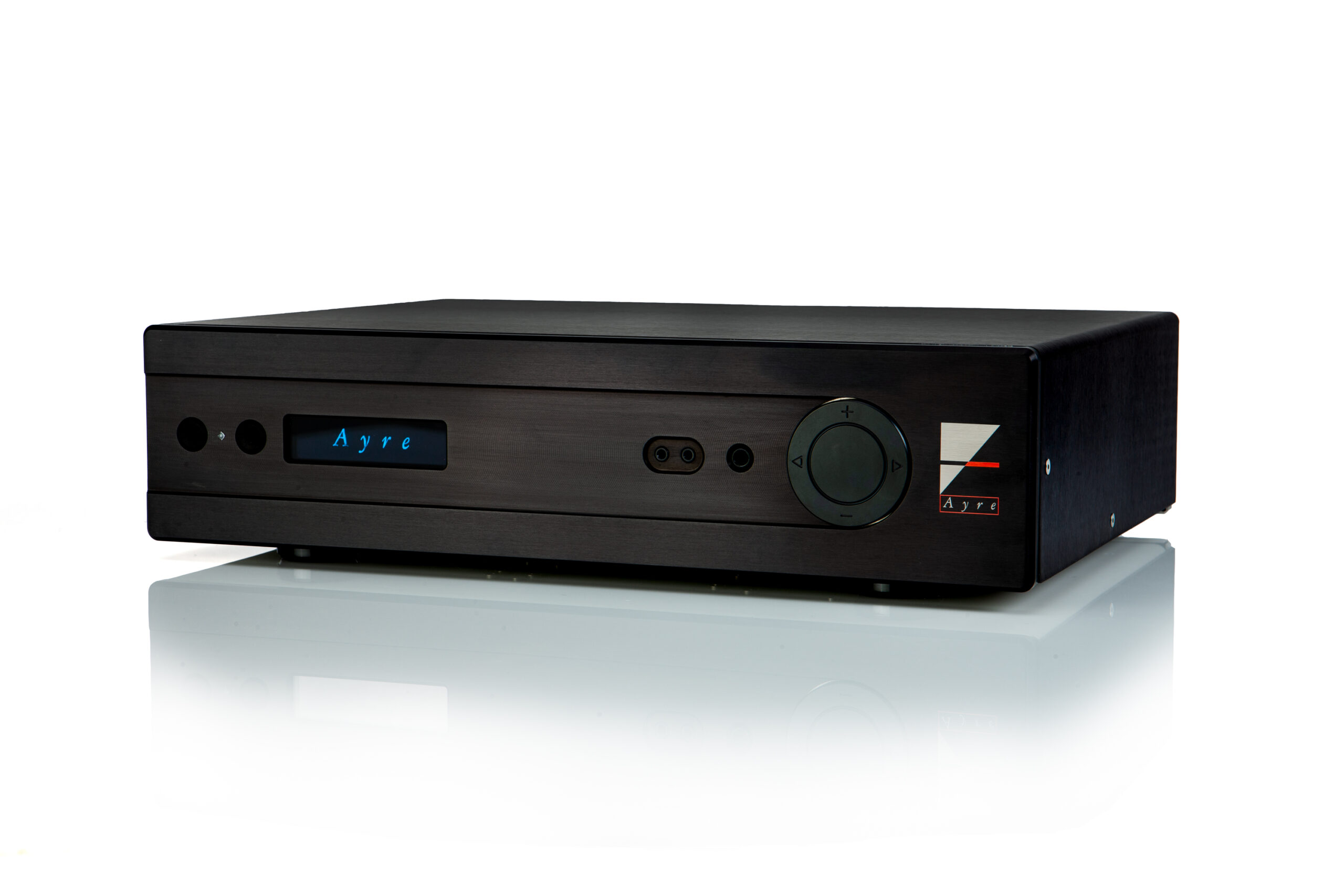

The Ayre Acoustics QX-8 is a premium digital hub crafted for audiophiles who demand uncompromised transparency and flexibility in a modern digital playback system. Built on Ayre’s renowned design philosophy of fully balanced circuitry, zero-feedback architecture, and meticulous component selection, the QX-8 delivers digital audio with exceptional refinement and musical realism. Whether paired with high-resolution streaming platforms or traditional digital sources, it preserves the integrity of the original signal with remarkable precision and openness. Its versatile input architecture—supporting optical, coaxial, AES/EBU, USB, and network streaming—makes the QX-8 a future-proof centerpiece capable of handling PCM up to 384 kHz and DSD up to 512. The asynchronous USB engine and Ayre’s custom digital filtering further enhance clarity, while the balanced line and headphone outputs ensure powerful, low-noise performance for both speakers and personal listening systems. The QX-8 integrates seamlessly with leading streaming services such as Tidal Connect, Qobuz, Spotify Connect, and is JPLAY certified, offering a modern, app-driven experience. Despite its advanced capabilities, it maintains modest power consumption and a clean, elegant chassis that reflects Ayre’s commitment to functional beauty. The QX-8 stands as an exceptionally capable digital front end, designed to elevate any high-performance audio setup.

Specifications

Digital Audio Inputs

• Optical / SPDIF / AES/EBU: 44.1–192 kHz, PCM 16/20/24-bit, DSD64 (DoP)

• USB2: PCM 44.1–384 kHz (16/20/24-bit), DSD64/128/256/512 RAW

• Net2: PCM 44.1–384 kHz (16/20/24-bit), DSD64/128 (DoP)

Streaming Compatibility

• Tidal Connect

• Qobuz Connect

• Spotify Connect

• JPLAY Certified

Outputs

• Line Output: 4.5 Vrms balanced, 2.25 Vrms single-ended

• Headphone Output: 9.0 Vrms balanced, 4.5 Vrms single-ended

XLR Input Polarity

• Pin 1 = Ground

• Pin 2 = Non-inverting (Positive)

• Pin 3 = Inverting (Negative)

Power Consumption

• 60 W in operating mode

Dimensions

• 17.25″ × 13.00″ × 4.5″

• 44 cm × 33 cm × 11.5 cm

Weight

• 12.5 lbs (5.7 kg)
